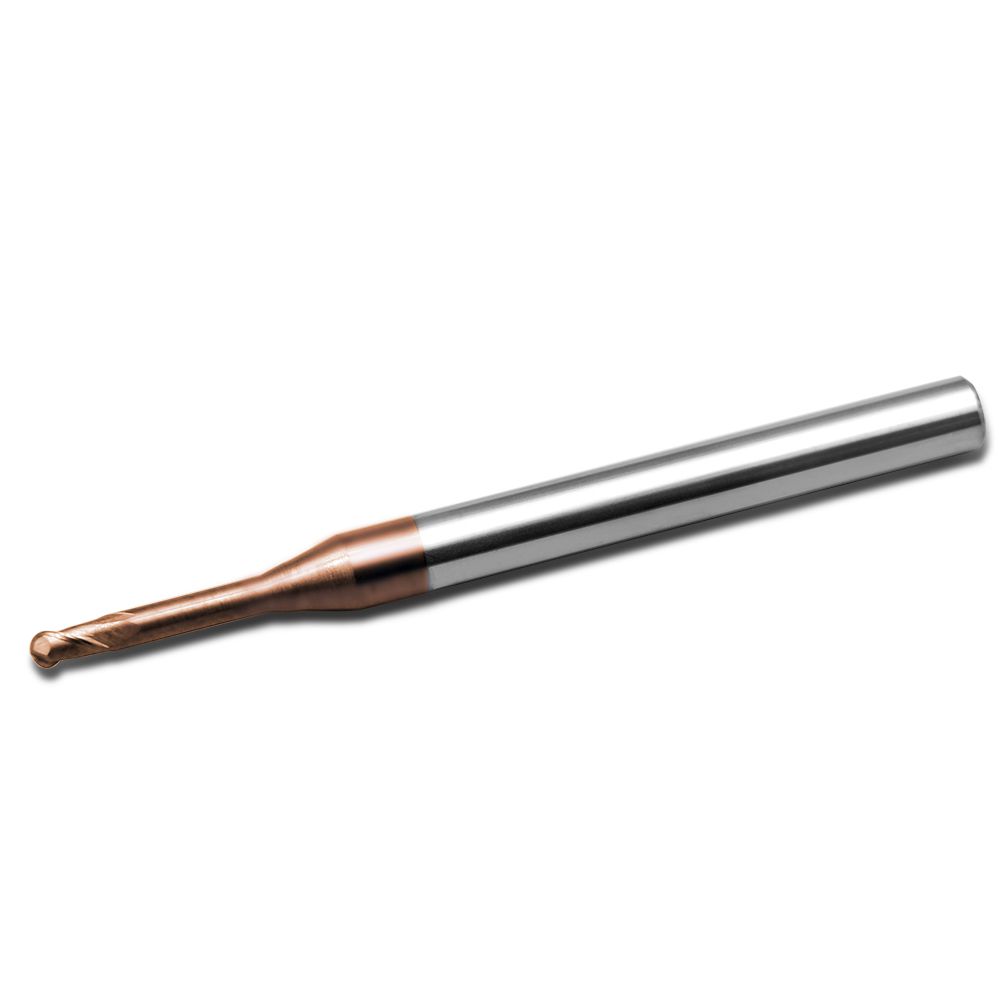

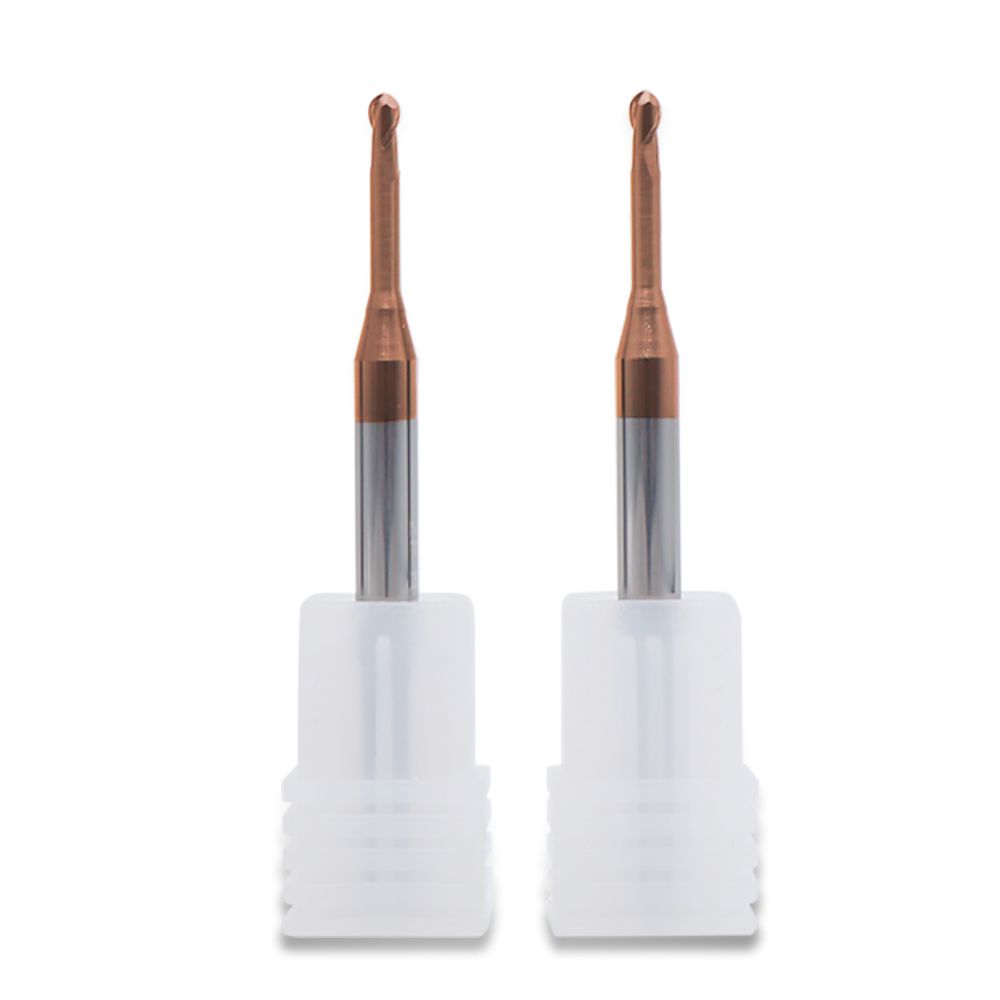

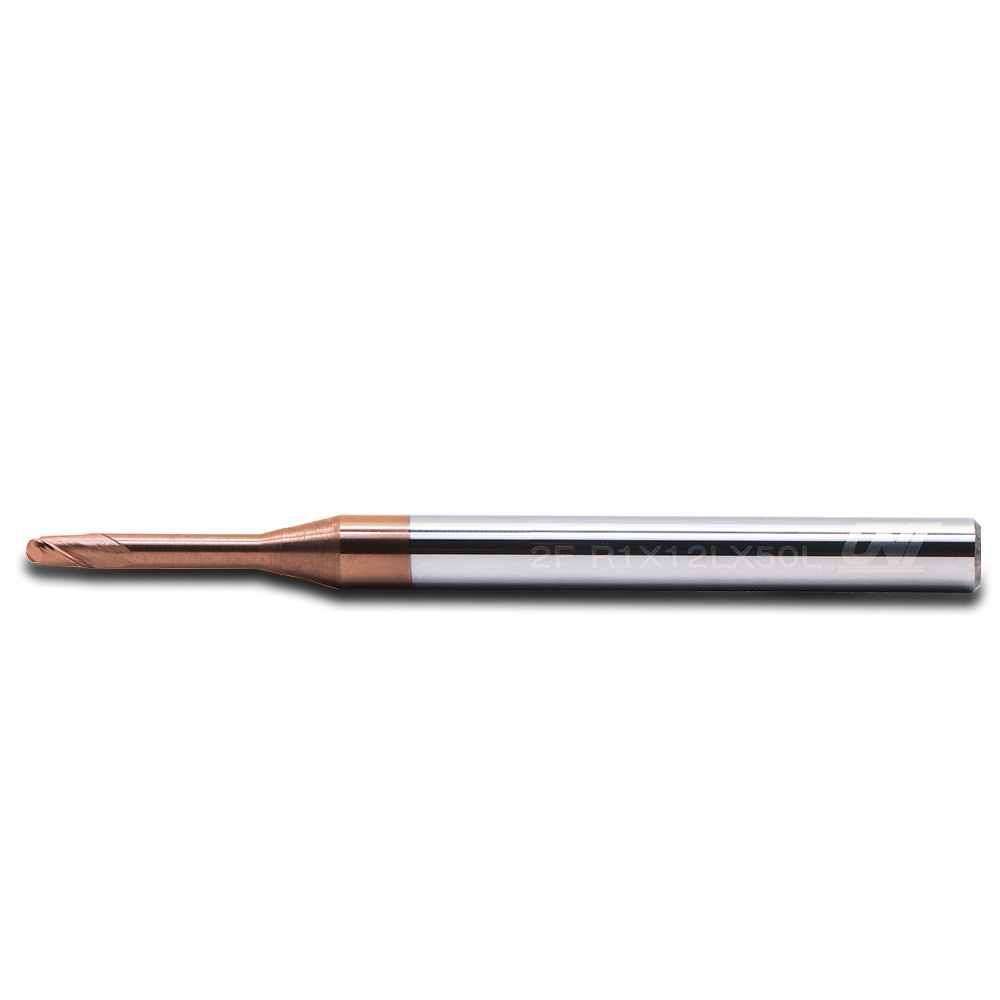

Fresa micro cónica (estria dupla) EMB 12
Especificações do produto
| Revestimento | AITiN | HRC | HRC50/65 |
| Ângulo de hélice | 30°/35° | Haste | CilíndricoH6 |
| Material | IMC™ UMG Haste de carboneto | Tolerância no diâmetro de corte | 0-0.030 |
HRC65 Fresa de topo esféricas de metal duro, 2 canais, comprimento longo - para processamento RIB (UNT-EMB12)

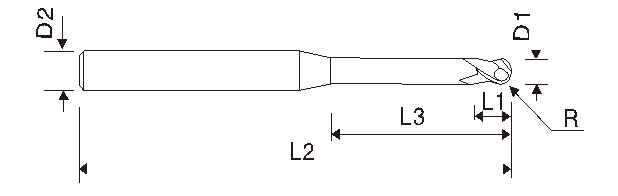

| UNT EDP # clique para pedir | Raio R |
Comprimento efetivo L3 |
Haste Dia. D2 |
Comprimento da estria L1 |
O.A.L. L2 |
Estrias |
| EMB120402 | R0.2 | 2 | 4 | 0.6 | 50 | 2 |
| EMB120404 | R0.2 | 4 | 4 | 0.6 | 50 | 2 |
| EMB120502 | R0.25 | 2 | 4 | 0.8 | 50 | 2 |
| EMB120504 | R0.25 | 4 | 4 | 0.8 | 50 | 2 |
| EMB120506 | R0.25 | 6 | 4 | 0.8 | 50 | 2 |
| EMB120602 | R0.3 | 2 | 4 | 1 | 50 | 2 |
| EMB120604 | R0.3 | 4 | 4 | 1 | 50 | 2 |
| EMB120606 | R0.3 | 6 | 4 | 1 | 50 | 2 |
| EMB120608 | R0.3 | 8 | 4 | 1 | 50 | 2 |
| EMB120802 | R0.4 | 2 | 4 | 1.2 | 50 | 2 |
| EMB120804 | R0.4 | 4 | 4 | 1.2 | 50 | 2 |
| EMB120806 | R0.4 | 6 | 4 | 1.2 | 50 | 2 |
| EMB120808 | R0.4 | 8 | 4 | 1.2 | 50 | 2 |
| EMB120810 | R0.4 | 10 | 4 | 1.2 | 50 | 2 |
| EMB121006 | R0.5 | 6 | 4 | 1.5 | 50 | 2 |
| EMB121008 | R0.5 | 8 | 4 | 1.5 | 50 | 2 |
| EMB121010 | R0.5 | 10 | 4 | 1.5 | 50 | 2 |
| EMB121012 | R0.5 | 12 | 4 | 1.5 | 50 | 2 |
| EMB121014 | R0.5 | 14 | 4 | 1.5 | 50 | 2 |
| EMB121016 | R0.5 | 16 | 4 | 1.5 | 50 | 2 |
| EMB121018 | R0.5 | 18 | 4 | 1.5 | 50 | 2 |
| EMB121020 | R0.5 | 20 | 4 | 1.5 | 50 | 2 |
| EMB121506 | R0.75 | 6 | 4 | 2.5 | 50 | 2 |
| EMB121508 | R0.75 | 8 | 4 | 2.5 | 50 | 2 |
| EMB121510 | R0.75 | 10 | 4 | 2.5 | 50 | 2 |
| EMB121512 | R0.75 | 12 | 4 | 2.5 | 50 | 2 |
| EMB121514 | R0.75 | 14 | 4 | 2.5 | 50 | 2 |
| EMB121516 | R0.75 | 16 | 4 | 2.5 | 50 | 2 |
| EMB121518 | R0.75 | 18 | 4 | 2.5 | 50 | 2 |
| EMB121520 | R0.75 | 20 | 4 | 2.5 | 50 | 2 |
| EMB122006 | R1.0 | 6 | 4 | 3 | 50 | 2 |
| EMB122008 | R1.0 | 8 | 4 | 3 | 50 | 2 |
| EMB122010 | R1.0 | 10 | 4 | 3 | 50 | 2 |
| EMB122012 | R1.0 | 12 | 4 | 3 | 50 | 2 |
| EMB122014 | R1.0 | 14 | 4 | 3 | 50 | 2 |
| EMB122016 | R1.0 | 16 | 4 | 3 | 50 | 2 |
| EMB122018 | R1.0 | 18 | 4 | 3 | 50 | 2 |
| EMB122020 | R1.0 | 20 | 4 | 3 | 50 | 2 |
| EMB123008 | R1.5 | 8 | 4 | 4.5 | 50 | 2 |
| EMB123010 | R1.5 | 10 | 4 | 4.5 | 50 | 2 |
| EMB123012 | R1.5 | 12 | 4 | 4.5 | 50 | 2 |
| EMB123014 | R1.5 | 14 | 4 | 4.5 | 50 | 2 |
| EMB123016 | R1.5 | 16 | 4 | 4.5 | 50 | 2 |
| EMB123018 | R1.5 | 18 | 4 | 4.5 | 50 | 2 |
| EMB123020 | R1.5 | 20 | 4 | 4.5 | 50 | 2 |
| EMB124012 | R2.0 | 12 | 4 | 6 | 50 | 2 |
| EMB124014 | R2.0 | 14 | 4 | 6 | 50 | 2 |
| EMB124016 | R2.0 | 16 | 4 | 6 | 50 | 2 |
| EMB124018 | R2.0 | 18 | 4 | 6 | 50 | 2 |
| EMB124020 | R2.0 | 20 | 4 | 6 | 50 | 2 |
| EMB124025 | R2.0 | 25 | 4 | 6 | 50 | 2 |
